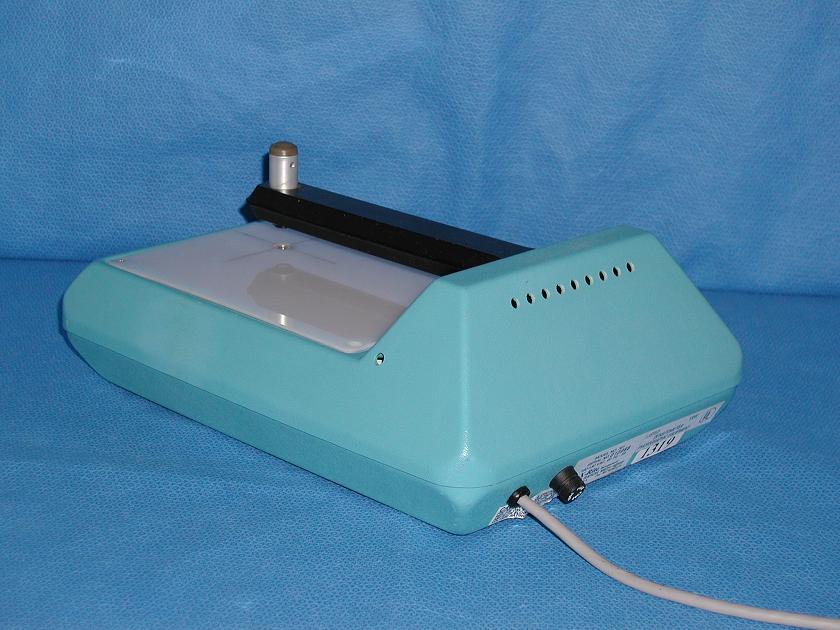

X - Rite 301 Densitometer

Item Number:

1319

Manufacturer:

Model:

301

Condition:

Used

Power Supply:

100-130 V, 0.5 A, 60 Hz

Specifications:

X - Rite 301 Densitometer is designed to help you keep your film processor producing optimum results

This densitometer will detect variations in film density far more subtle than can be seen by the naked eye Wide measurement range allows you to determine base fog and accurately determine densities up to 5 D.

Measurements are made on a push button and read basis. The display, consists of large, half inch LED numerals which can be read easily in bright or dim lightInternal memory and the null button allow the operator to make comparative density measurements across a piece of film. Other quality features include a lighted work table, simple calibration procedure arid rugged construction U.L. listed and C.S.A. certified, and is shipped calibrated to standardstraceable to the NBS. This is probably the most widely accepted and used densitometer for medical and industrial x-ray requirements Proven oil field use Modular construction allows rapid replacement of lamps and easy access to electronic circuits.One Year Limited Warranty (bulb excluded).

Specifications:

• Measuring Range 0-5.OD with 2 and 3mm apertures.
• 0-4.OD with 1mm aperture.
• Accuracy: + - .02D.
• Repeatability: + or - .01D.
• Operating Temperature Range 10-40 C.
• Warm-up Time 60 seconds. Scale Factor Stability: + or - 1% per 6 months.
• Null Drift + or - .03D max. + or - .01D typical
